Magnetic Field Sensors

Inductive Magnetic Sensors Catalog

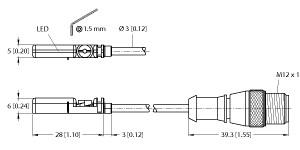

BIM-UNT-AP6X-0.3-RS4T
BIM-UNT-AP6X-0.3-RS4T
Turck Magnetic Field Sensor, For Pneumatic Cylinders, For T-groove cylinders without mounting accessories, Optional accessories for mounting on other cylindrical housings., One-hand mounting possible, Fine adjustment tool and stopper directly mountable on the sensor, Stable mounting, DC 3-wire, 10…30 VDC, NO contact, PNP output, Pigtail with male end, M12 x 1, Cable length (L) 0.3 m, Magneto-resistive sensor
BIM-UNT-2AP6X-0.2-RSC4.4T
BIM-UNT-2AP6X-0.2-RSC4.4T
Turck Magnetic field sensor, for pneumatic cylinders, For T-groove cylinders without mounting accessories, Optional accessories for mounting on other cylindrical housings., One-hand mounting possible, Fine adjustment tool and stopper directly mountable on the sensor, Stable mounting

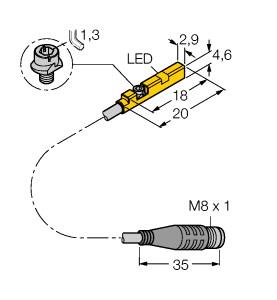

BIM-UNT-AP6X-0.3-PSG3M
BIM-UNT-AP6X-0.3-PSG3M
Turck Magnetic Field Sensor, For Pneumatic Cylinders, For T-groove cylinders without mounting accessories, Optional accessories for mounting on other cylindrical housings., One-hand mounting possible, Fine adjustment tool and stopper directly mountable on the sensor, Stable mounting, DC 3-wire, 10…30 VDC, NO contact, PNP output, Pigtail with male end, M8 x 1, Cable length (L) 0.3 m, Magneto-resistive sensor

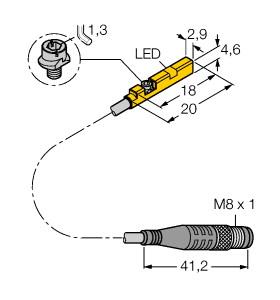

BIM-UNT-AP6X-0.3-PSG3S
BIM-UNT-AP6X-0.3-PSG3S
Turck Magnetic Field Sensor, For Pneumatic Cylinders, For T-groove cylinders without mounting accessories, Optional accessories for mounting on other cylindrical housings., One-hand mounting possible, Fine adjustment tool and stopper directly mountable on the sensor, Stable mounting, DC 3-wire, 10…30 VDC, NO contact, PNP output, Pigtail with male end, Ø 8 mm, Cable length (L) 0.3 m, Magneto-resistive sensor
BIM-UNT-AP6X
BIM-UNT-AP6X
Turck Magnetic Field Sensor, For Pneumatic Cylinders, For T-groove cylinders without mounting accessories, Optional accessories for mounting on other cylindrical housings., One-hand mounting possible, Fine adjustment tool and stopper directly mountable on the sensor, Stable mounting, DC 3?wire, 10…30 VDC, NO contact, PNP output, Cable connection, Cable length (L) 2 m, Magneto-resistive sensor
BIM-UNR-AP6X-0.3-RS4 W/M
BIM-UNR-AP6X-0.3-RS4 W/M
Turck Magnetic Field Sensor, For Pneumatic Cylinders, For C-groove cylinders without mounting accessories, Optional accessories for mounting on other cylindrical housings., One-hand mounting possible, Stable mounting, DC 3-wire, 11…30 VDC, NO contact, PNP output, Pigtail with M12 × 1 male connector, Cable length (L) 0.3 m, Magneto-resistive sensor

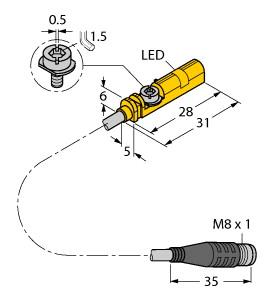

BIM-UNR-AP6X-0.3-PSG3M W/M
BIM-UNR-AP6X-0.3-PSG3M W/M
Turck Magnetic Field Sensor, For Pneumatic Cylinders, For C-groove cylinders without mounting accessories, Optional accessories for mounting on other cylindrical housings., One-hand mounting possible, Stable mounting, DC 3-wire, 11…30 VDC, NO contact, PNP output, Pigtail with M8 × 1 male connector, Cable length (L) 0.3 m, Magneto-resistive sensor
BIM-UNR-AP6X-0.3-PSG3S W/M
BIM-UNR-AP6X-0.3-PSG3S W/M
Turck Magnetic Field Sensor, For Pneumatic Cylinders, For C-groove cylinders without mounting accessories, Optional accessories for mounting on other cylindrical housings., One-hand mounting possible, Stable mounting, DC 3-wire, 11…30 VDC, NO contact, PNP output, Pigtail with Ø 8 mm male connector, Cable length (L) 0.3 m, Magneto-resistive sensor
